Puf Panel Fasteners

Primus PUF panel fasteners product range label

STEEL THICKNESS > THAN 12MM

Max 12mm Thick

APPLICATION

The Primus range of fasteners is designed for Fixing insulated panel sheeting into metal.

PRODUCT SPECIFICATIONS

Hex Washer Head-8mm

Hex Washer Flange ø14.7

Trishul™ Drill Tip Point #5

SURFACE COATING

PriSeal™ Ruspert Polymer Coating

Tested In Accordance to ASTM B117 & DIN 50018

MATERIAL

Case Hardened Carbon Steel SAE 1022

Australian Standard AS3566 Class 3 Series

Heat Treatment: To AS 3566.1

Coating/Spec Badge Icon
Coating/Spec Badge Icon
Coating/Spec Badge Icon
Primus PUF panel fastener specification chart
Primus PUF panel fastener material specification chart

SEALING WASHERS

OD 19 Bi-Metal Bonded Washer

OD-19 bi-metal bonded washer diagram for PUF panel fasteners
OD-19 bonded washer construction detail diagram
OD-19 bonded washer detail icon

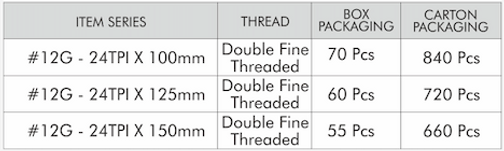

SIZES & PACKAGING DETAILS

Primus PUF panel fastener sizes and packaging chart

All dimensions nominal unless otherwise stated. Normal manufacturing tolerances apply.

All dimensions in millimeters.
